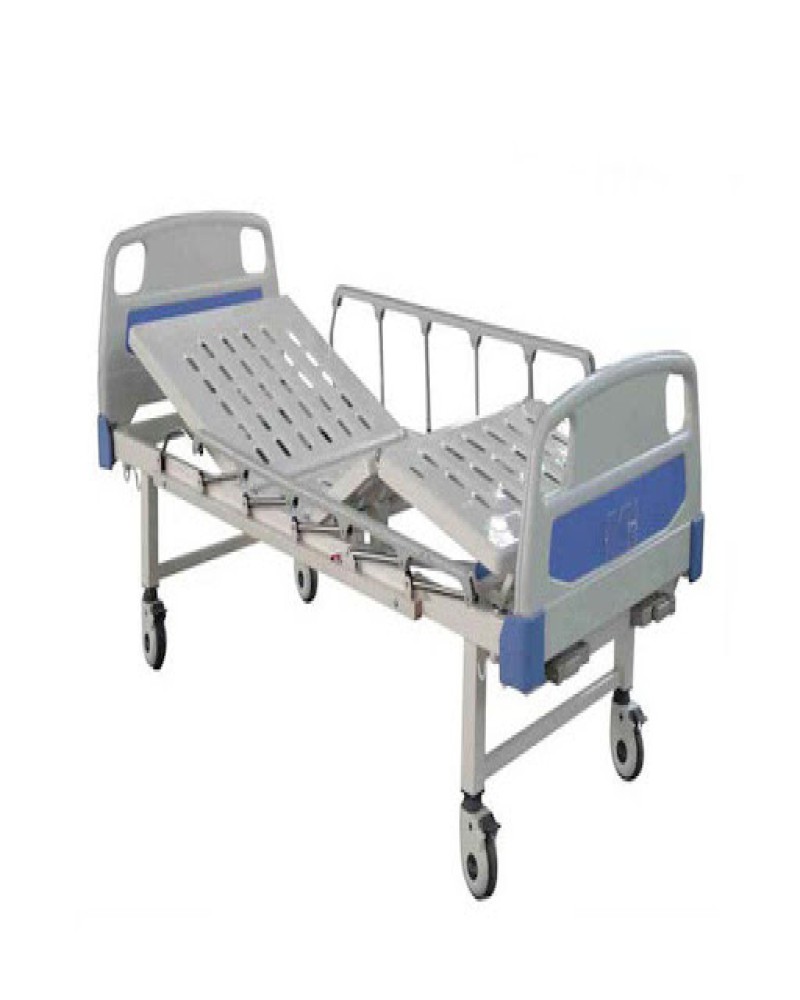

Descriptions
- Head of bed end of bed :Advanced engineering plastic blow moldingConstitution of bed surface :C type punching stripGuardrail: Stainless steel column plus five column (or six) aluminum alloy guardrailCasters: Optional availableCranks: Stainless steel hand crankLoad bearing :Load bearing -250 kgWith Metes
Technical description:
- Top section is constructed using 50 x 25 mm rectangular mild steel tubes.
- The top of the beds is covered with 1.25 mm thick perforated CRCS steel sheet (2000 L x 900 W mm)
- Legs of the bed are with round CRCS
- Dimensions of the square mild steel pipe are 50mm x 25mm. Its joints are nicely welded
- Bed mounted on four 125 x 30 mm swivel mobile castors, two of which are equipped with breaks
- A foldable aluminum protective side railing of 1450(L) x 380(H) mm
- Leg panels are of different height
Adjustment:
- There is an electric motor (with power of 220v) located under the top surface, which allows backrest to be adjusted up to 75 degree
- Height can also be adjusted from 35 to 80 cm as the beds are provided with the smooth crank system
